RADIAL DRILL MACHINE

RADIAL DRILL MACHINE

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

DESIGN FEATURES :

  • Base Plate, Coolant Tank is engulfed with equally scaled base plate and 'T' slot provided in base plate are duly machined. Leveled foundation of base plate includes bolts

  • Column so provided in base plate is single column which is grinded by WMW German make cylindrical grinder ensuring efficient as well as long lasting.

  • Main Spindle made from alloy steel with 6 slots is machined by Hobber machine and MT - Bore is provided internally grinded by internal grinding machine.

  • All Components machines using jigs and fixtures on best mother machines to close tolerance thus providing easy interchangeability and best results as well.

  • Wherever provision for lifting up and down to sleeve / arm of machine provided auto cut switches to avoid accidents is provided including other parts as well wherever necessary.

  • Day to day improvements are contemplated fore better performance of the machine, we reserve the right to alter the specifications without prior notice.

  • Overall dimensions are in mm and approximate only.

SIC - 40/1000

CAPACITY
Drilling Capacity 40 mm.
DRILL HEAD
Spindle Nose MT - 4
Spindle Travel 175
No. of Spindle Speed 8
Range of Spindle Speed 90 - 1000R.P.M.
No. of Power Feed (2)
Power feed Range 0-20-0.10mm / Rev.
WORKING RANGE
Drilling Radius Max./ Min. 1125 - 505
Distance from Column  to Spindle Center Max. / Min             1020 - 400
Distance from spindle to base Max. / Min. 1180 - 380
Column Diameter 210
Vertical Power Movement of Arm. 800
Horizontal Movement of Drilling Head. 635
Box Table size(L x W x H) 510 x 380 x 355
BASE PLATE
L x W x H x 1625 x 850 x 180
Working Surface. 1010 x 690
Number of 'T' Slot / Size 3 / 16
POWER
Drilling Motor 1.5 / 1400KW / RPM
  1.5 / 2800KW / RPM
Elevating motor for arm. 0.75 / 1440KW / RPM
Shipping Size (Approx) L x W x H 1750 x 1000 x 200

Other Products in 'Drilling Machine' category

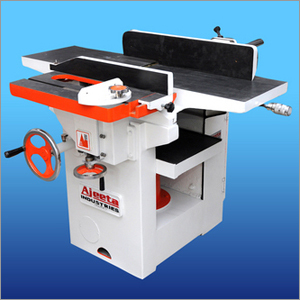

Surface Planner With thikness and Circular (3in1)
Send Inquiry

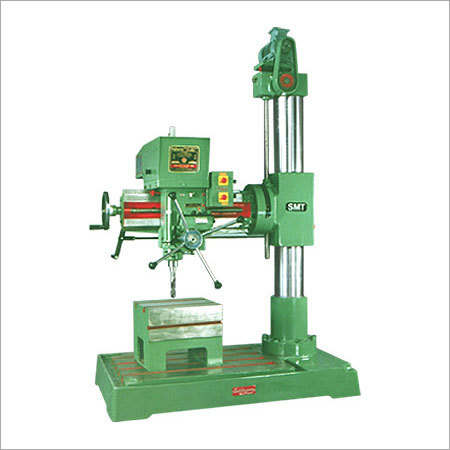

Redial Drilling Machine
Send Inquiry

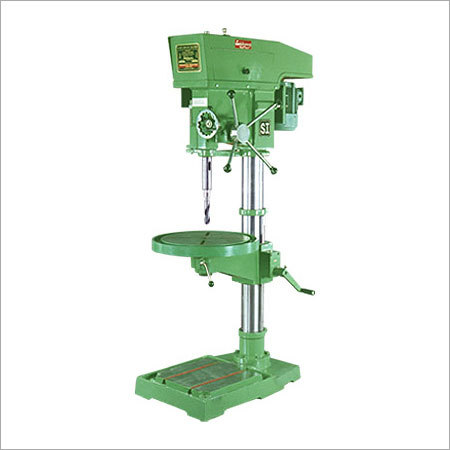

Pillar Drilling Machine
Send Inquiry

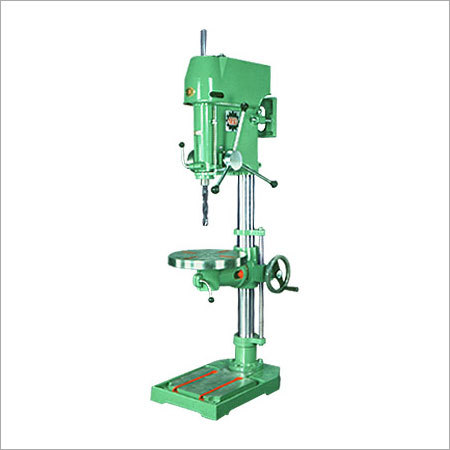

Pillar Type Drilling Machine
