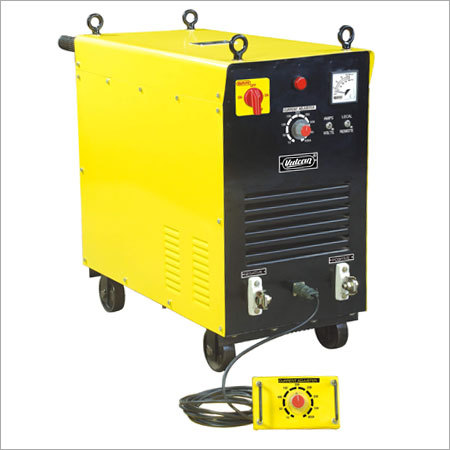

DC TIG-Arc Welding Power Source Machine
Product Details:
X
Product Description
Welding Rectifier TH
We are the foremost manufacturer, exporter and supplier of a broad range of DC TIG-Arc Welding Power Source Machine. This machine is manufactured in compliance with the defined industry standards using excellent quality raw materials and is used in fabrication industries, nuclear power plants, chemical processing plants, offshore works, defense, steel plants, thermal power plants, mining and structural fabrications, etc. This DC TIG-Arc Welding Power Source Machine is highly appreciated by our clients due to its dimensional accuracy, reliable operations and user friendly interface.
Specifications:
"Vulcan" forced air cooled, welding Rectifiers, Designed to provide DC welding current
Salient Features
- Real Vertical Characteristics.
- Stable Arc with easy droplet transfer.
- 'Hot Start' Facility.
- Electronically Controlled 'Antistick'.
- Remote Control Unit.
- Protection Against H.F. Interference and Thermal run away.
- Superb Welding Performance.
- Reliable and Tropical Design.
|
Models |
WR20TH |
WR30TH |
WR40TH |
WR60TH |
|
Input Supply |
415 V, 3 Phase, 50 Hz, AC |
415 V, 3 Phase, 50 Hz, AC |
415 V, 3 Phase, 50 Hz, AC |
415 V, 3 Phase, 50 Hz, AC |
|
Open Circuit Voltage (Max.) |
80 V, DC |
80 V, DC |
95 V, DC |
95 V, DC |
|
Welding Current Range |
10-200 Amps. DC |
10-300 Amps. DC |
10-400 Amps. DC |
10-600 Amps. DC |
|
Max Welding Current@60% Duty Cycle |
200 Amps |
300 Amps |
400 Amps |
600 Amps |
|
Rating (KVA) |
12 KVA |
17 KVA |
22 KVA |
40 KVA |
|
Current Regulation Type |
Stepless |
|||
|
Insulation |
Class 'H' |
|||
|
Cooling |
Forced Air Cooled |
|||
|
Dimension (LxWxH) (M.M.) |
790x310x690 |
890x390x790 |
890x390x790 |
970x460x830 |
|
Weight (Approx.) |
95 Kgs. |
130 Kgs. |
140 Kgs. |
180 Kgs. |
Note: Due to policy of continuous improvements, we reserve the right to modify the equipment and change specifications without prior notice.
