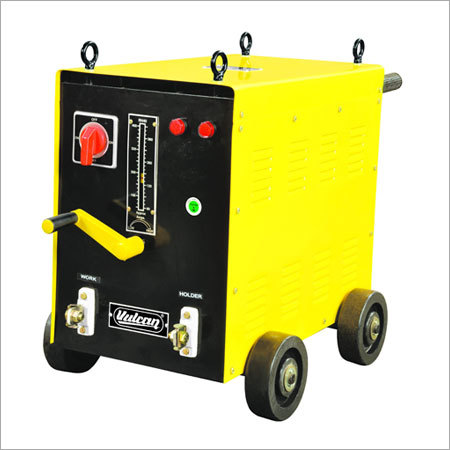

Heavy Duty Regulator Type Arc Welding Machine
Product Details:
X
Product Description
Keeping track of the latest market developments, we are engaged in offering a broad gamut of Heavy Duty Regulator Type Arc Welding Machine. The regulator type arc welding machine promises reliability, abrasion resistance & ease of installation and is manufactured using unmatched quality raw materials in our sophisticated manufacturing unit in compliance with the international standards. This Heavy Duty Regulator Type Arc Welding Machine is offered in varied technical specifications as per the requirements of our clients.
Salient Features
- Modern looks, novel design concepts.
- Epoxy powder coated body for long life.
- Coil varnishing by vacuum pressurized impregnating varnishing system.
Specifications
|
Particulars |
Units |
Model |
|||
|
Nominal Current Output |
Amps. |
300 |
400 |
500 |
600 |
|
Primary Voltage |
Volts |
380-415 |
|||
|
Phase |
Nos. |
1 (2 lines of 3 phase supply) or 3 |
|||
|
Frequency |
Hzs. |
50 |
50 |
50 |
50 |
|
Open Circuit Voltage |
Volts |
60 |
|||
|
Insulation |
Class |
'A' or 'F' |
|||
|
Max. Continuous Hand Welding Current at 60% Duty Cycle |
Amps |
300 |
400 |
500 |
600 |
|
Max. Continuous Automatic Welding Current at 100% Duty Cycle |
Amps |
220 |
310 |
375 |
450 |
|
Stud type Machines Max. Approx. Dimensions |
H mm L mm W mm |
660 500 840 |
660 500 840 |
675 565 925 |
675 565 925 |
|
Regulator (shunt) type machine Max. Approx. Dimensions |
H mm L mm W mm |
660 600 500 |
660 600 500 |
730 900 520 |
730 900 520 |
|
Confirm To |
|
IS-1851-1975 |
|||
